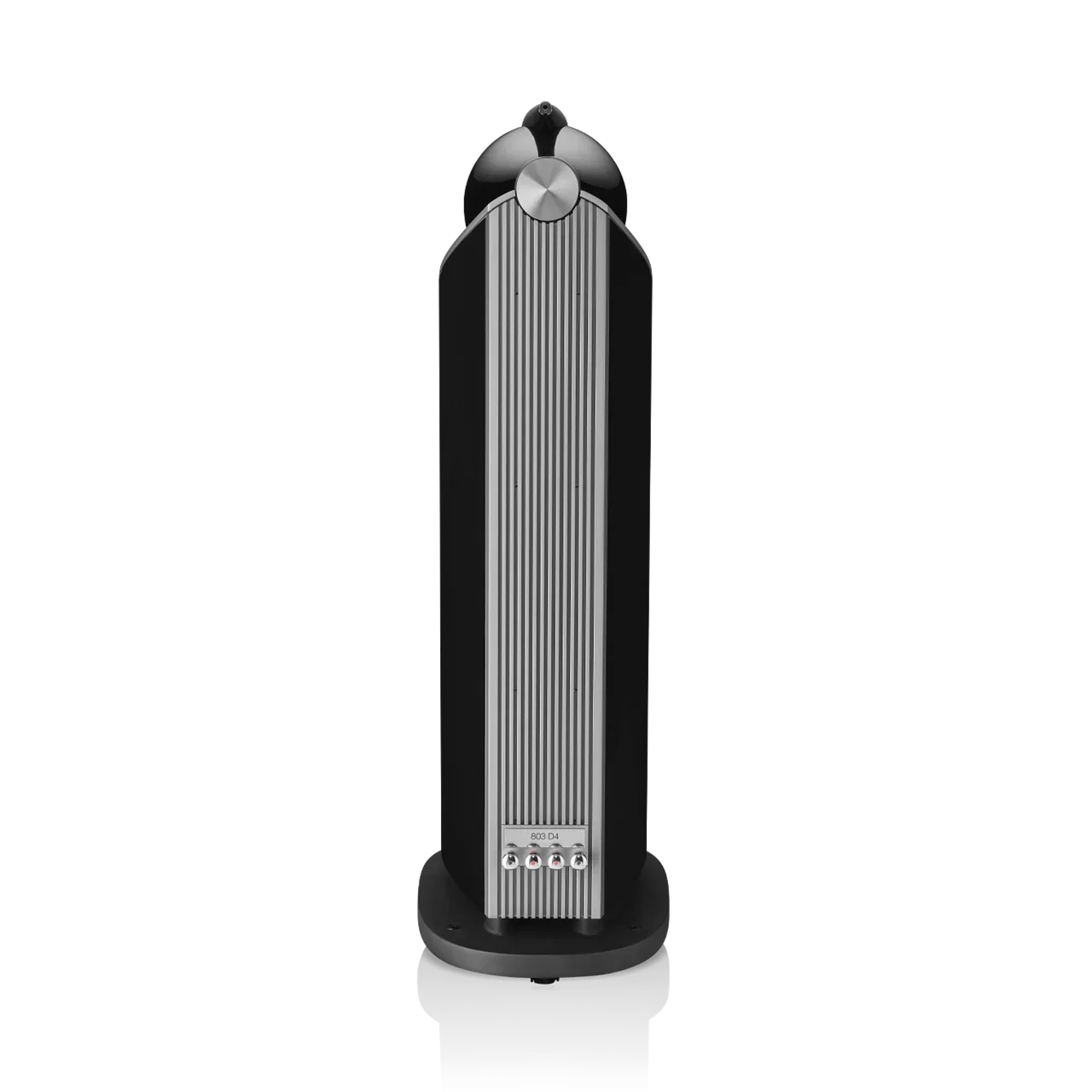

Bowers & Wilkins - 803 D4

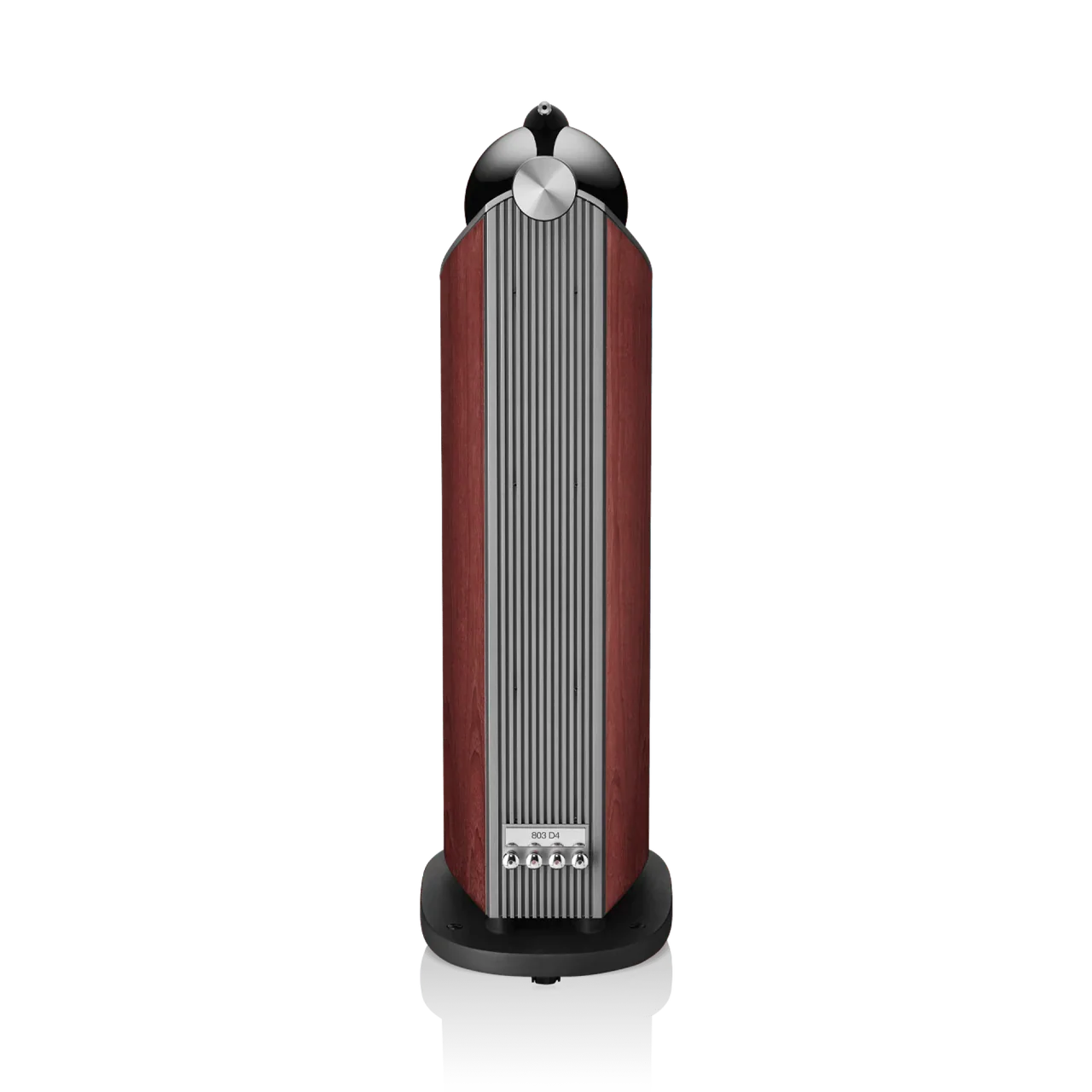

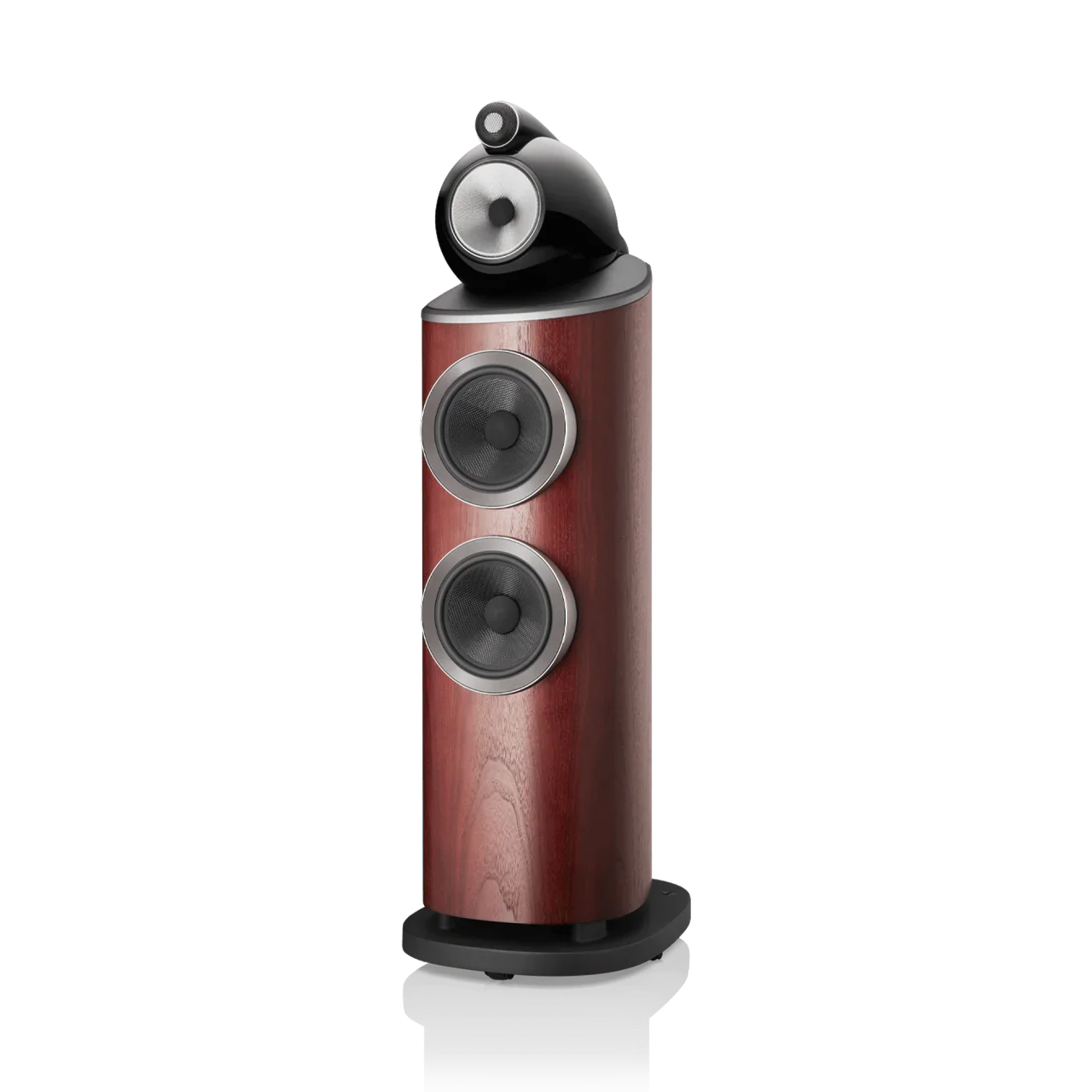

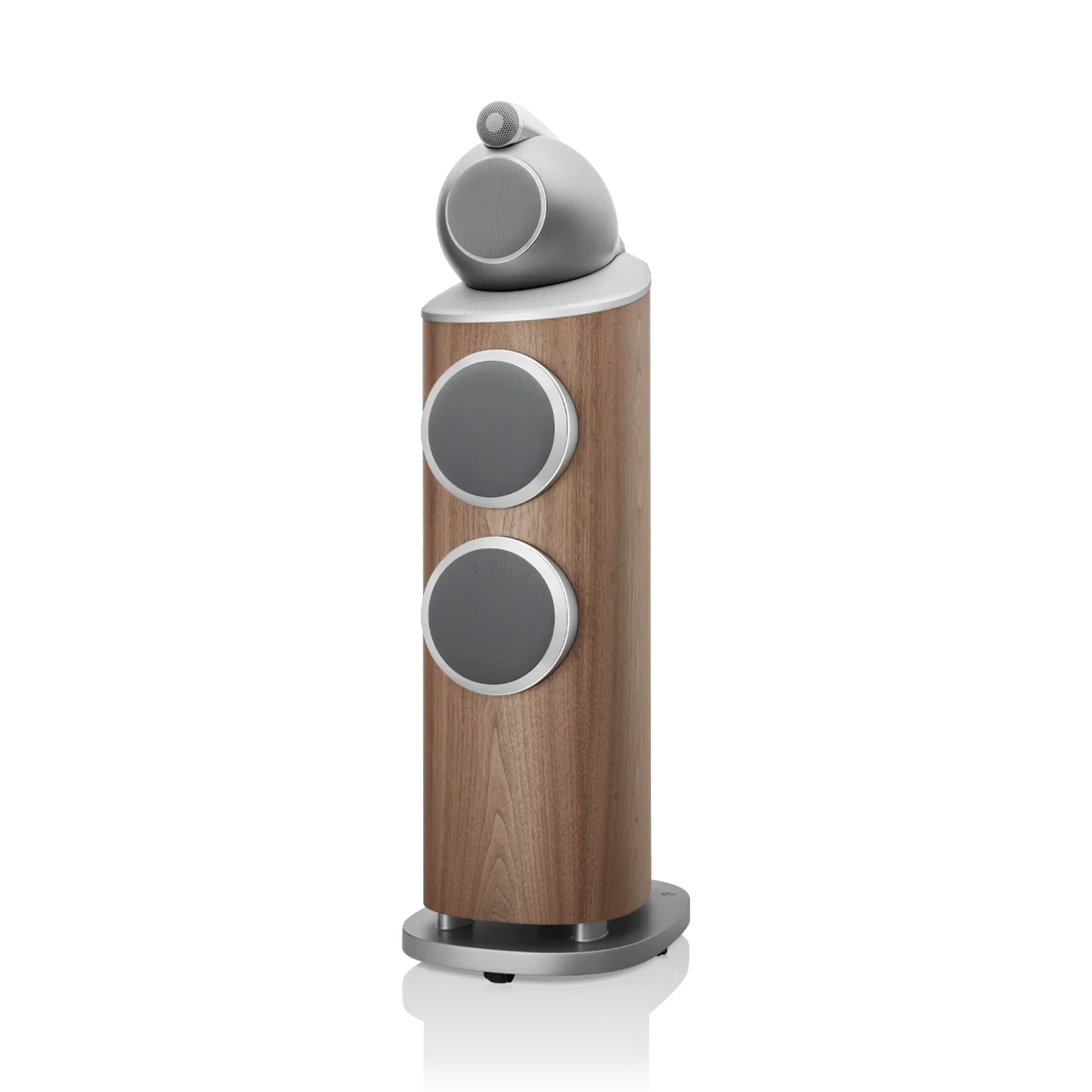

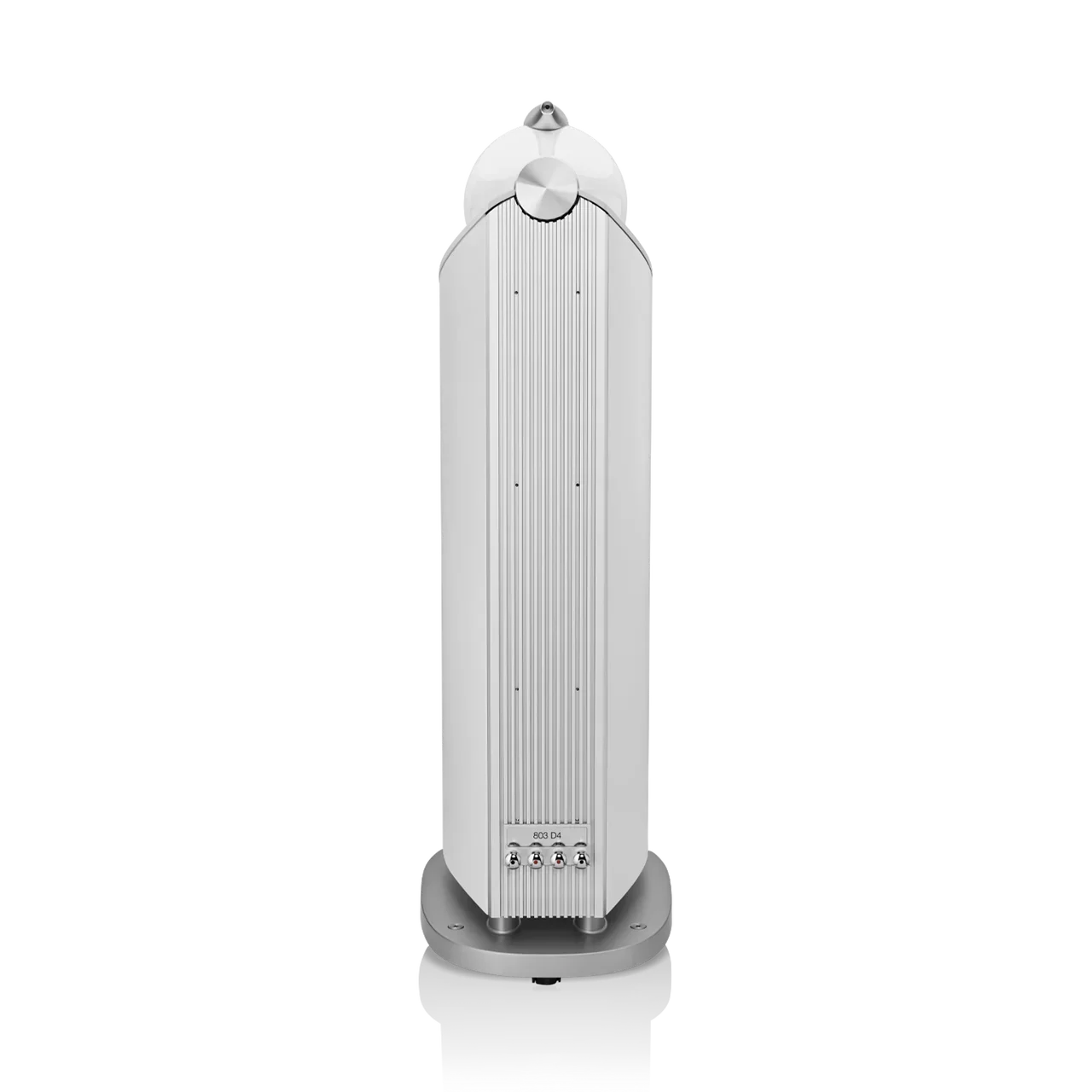

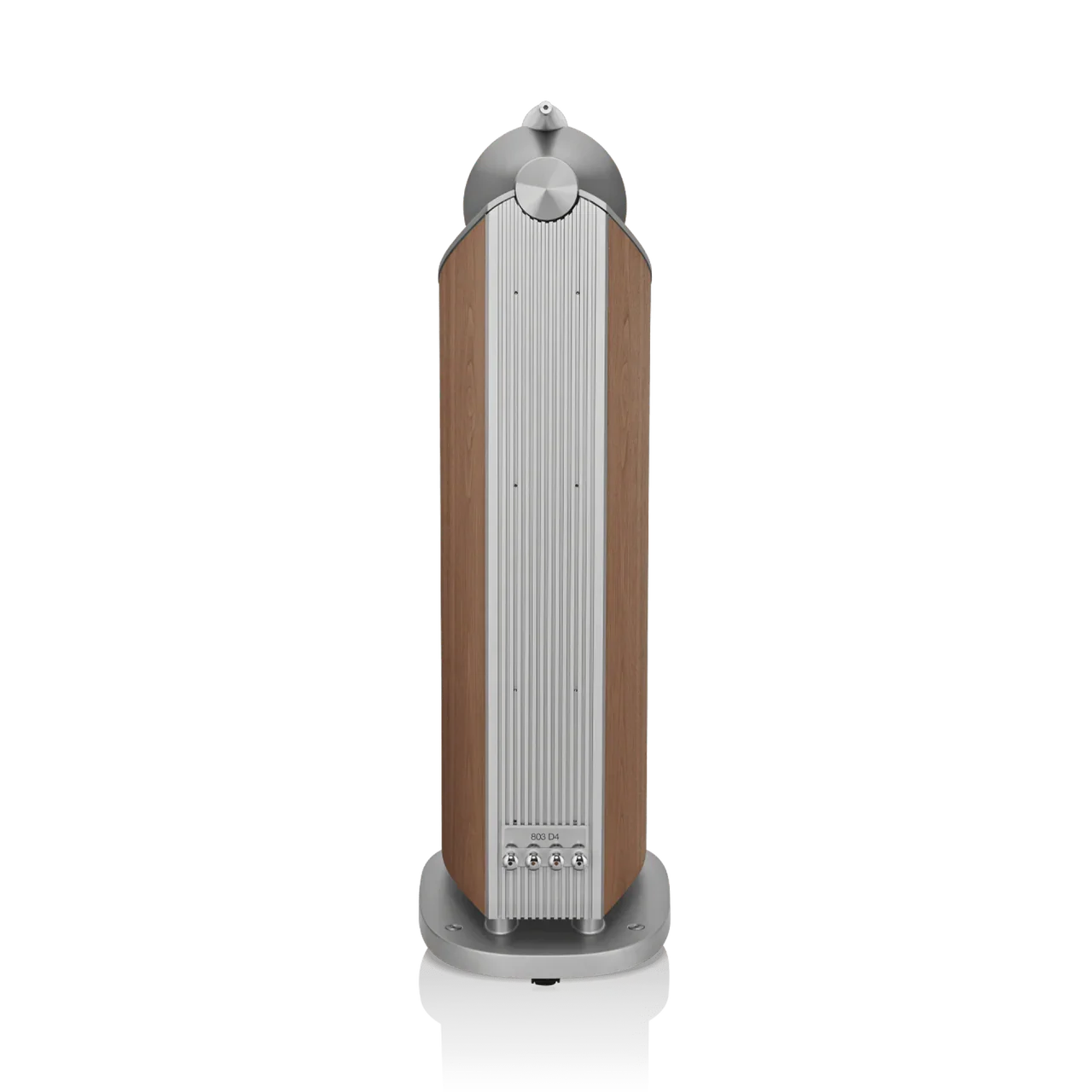

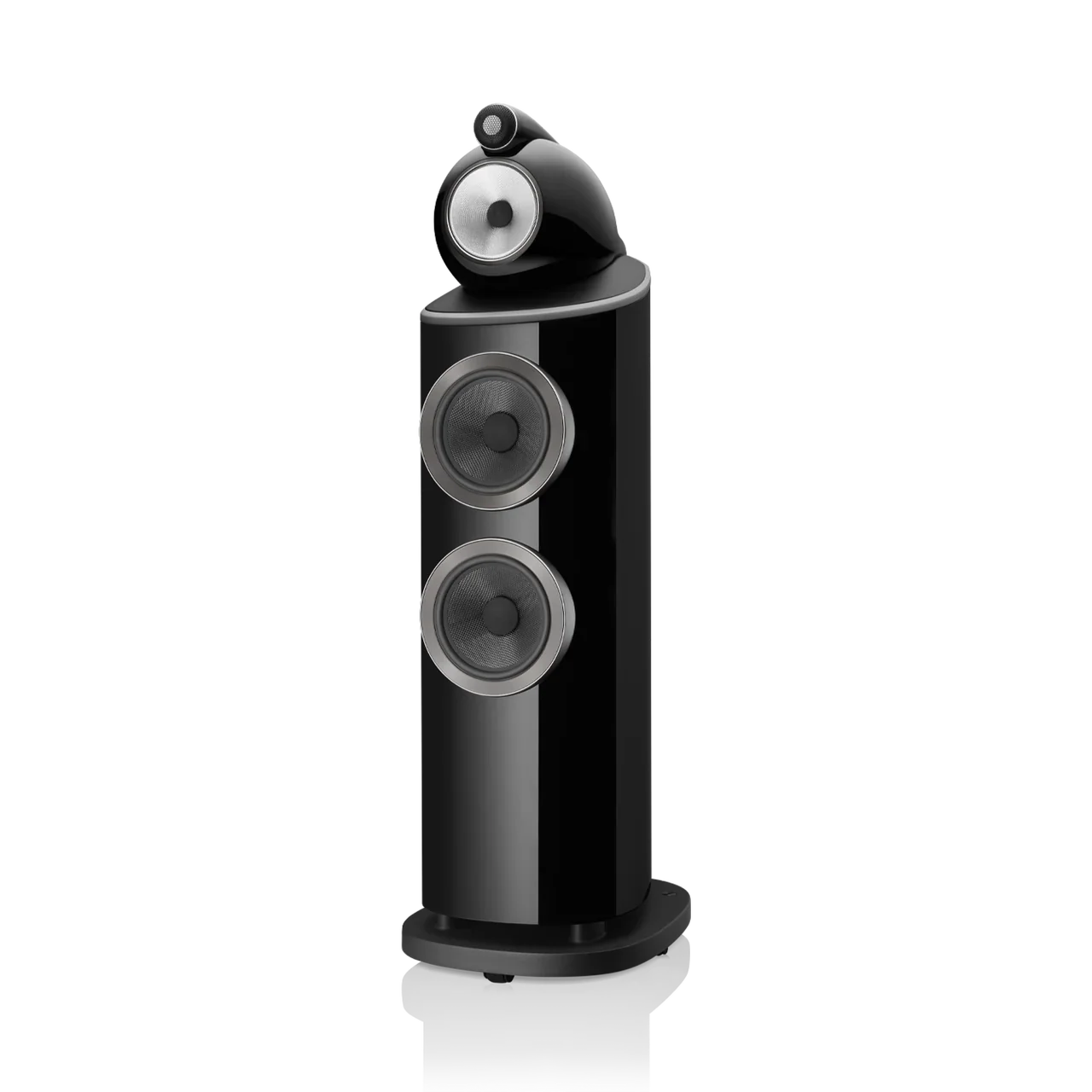

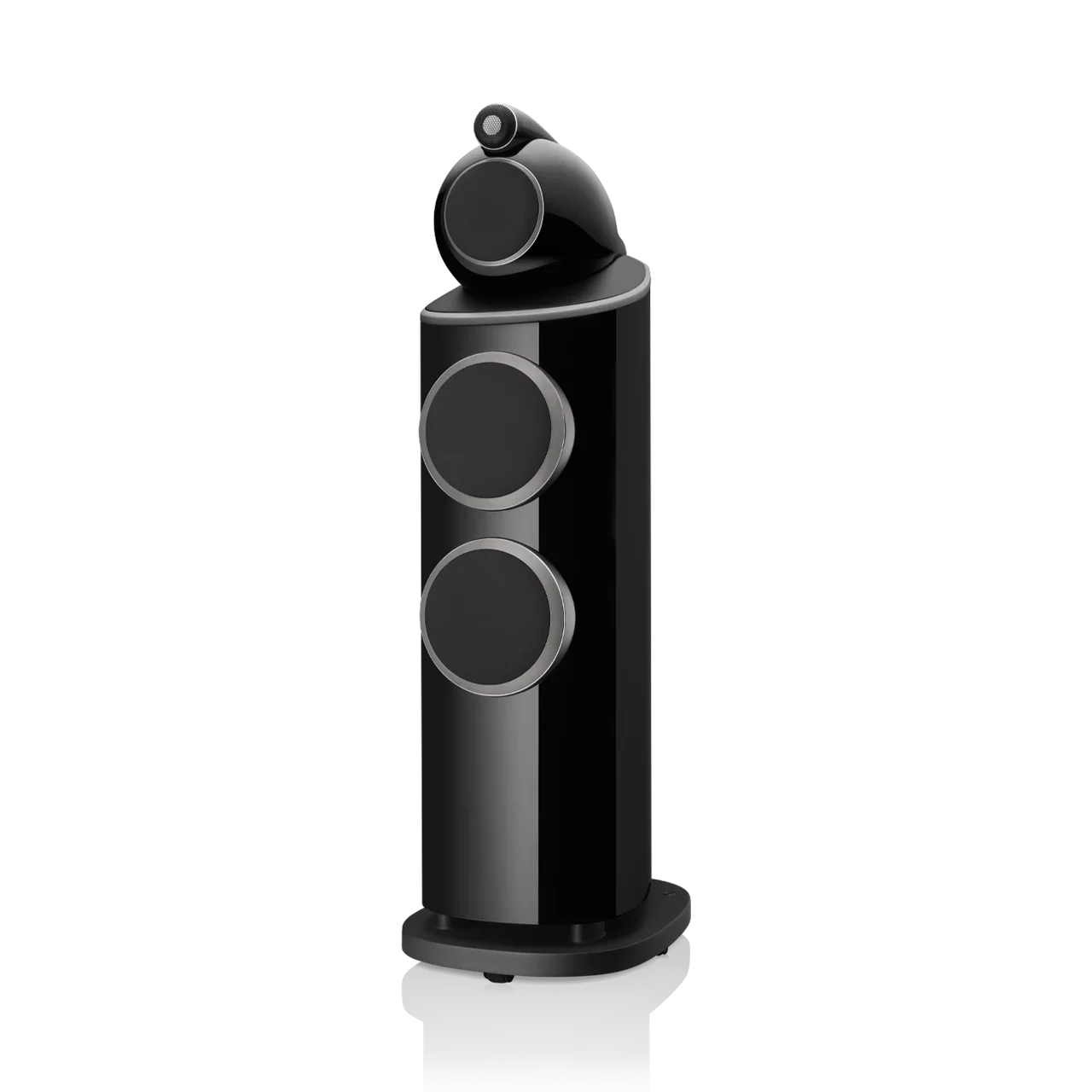

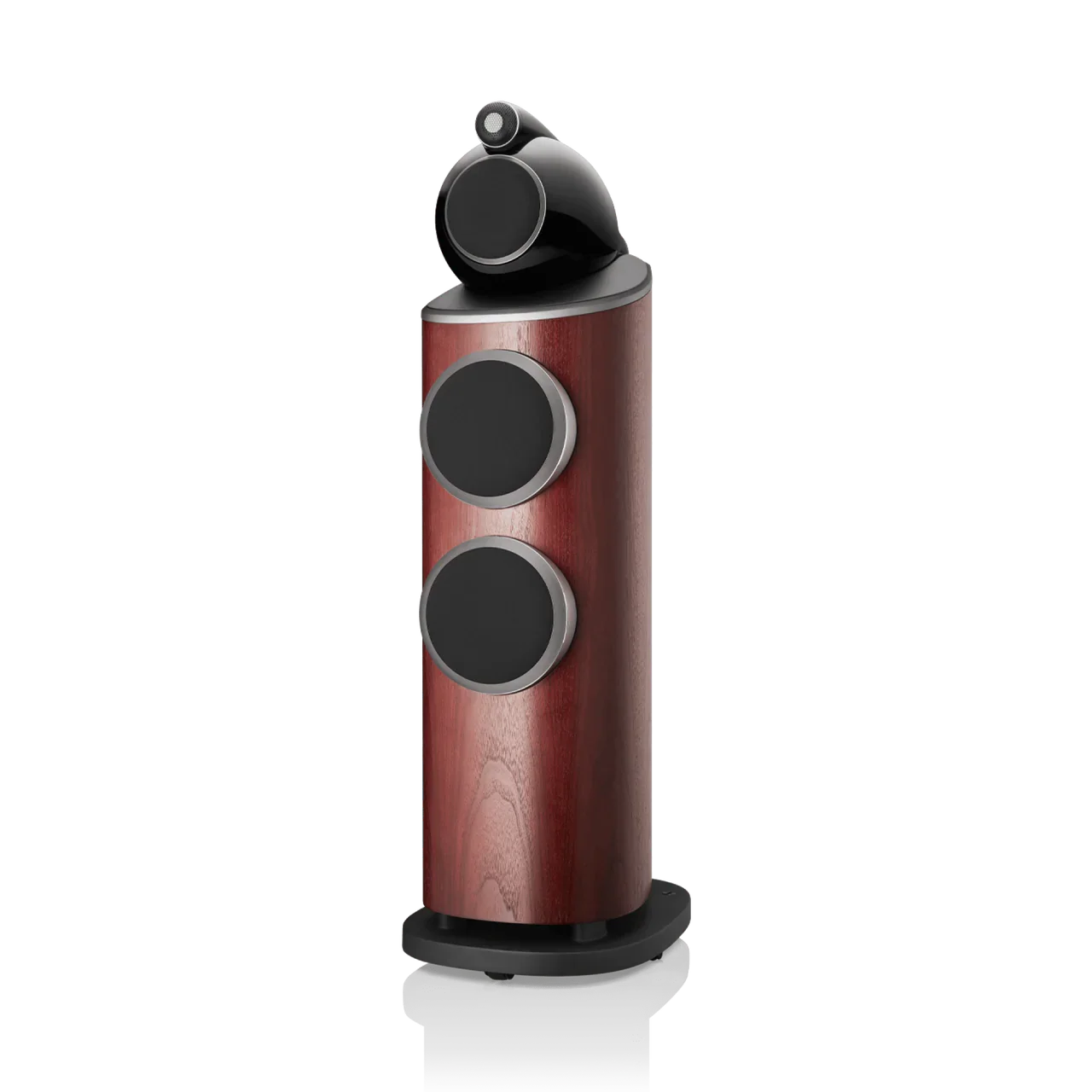

Bowers & Wilkins - 803 D4 (SOLD AS A PAIR)

Floorstanding Speaker

Our most compact headed model brings all the technical advantages of a dedicated midrange enclosure - the Turbine™ Head, with its decoupled midrange cone - to a smaller footprint that's easily accommodated in any home.

Small wonder

803 D4 may be notably more compact than the 801 D4 or 802 D4, but it still bristles with technical innovation, most obviously in its use of a three-box construction. Its 130mm (5-in) midrange cone is carefully isolated from the impact of its bass cones thanks to its Turbine Head enclosure.

Reverse Wrap cabinet

Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.

Feature Set Includes:

Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Matrix™
Anti-Resonance plug
Biomimetic Suspension
Turbine™ Head
Aerofoil™ cone bass units
Flowport
Description 3-way vented-box system
Drive units 1x ø25mm (1in) Diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø180mm (7in) Aerofoil cone bass units
Frequency range 16Hz to 35kHz
Frequency response 19Hz to 28kHz (+/-3dB from reference axis)
Sensitivity 90dB (on axis at 2.83Vrms at 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 80Hz – 20kHz
<0.3% 100Hz – 20kHz
Nominal impedance 8Ω (minimum 3.0Ω)
Recommended amplifier power 50W – 500W into 8Ω on un-clipped program
